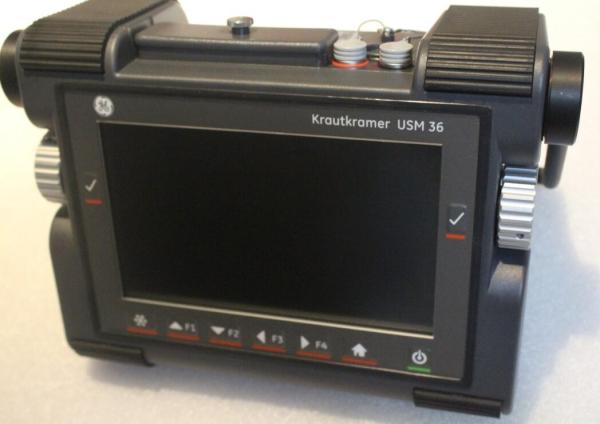

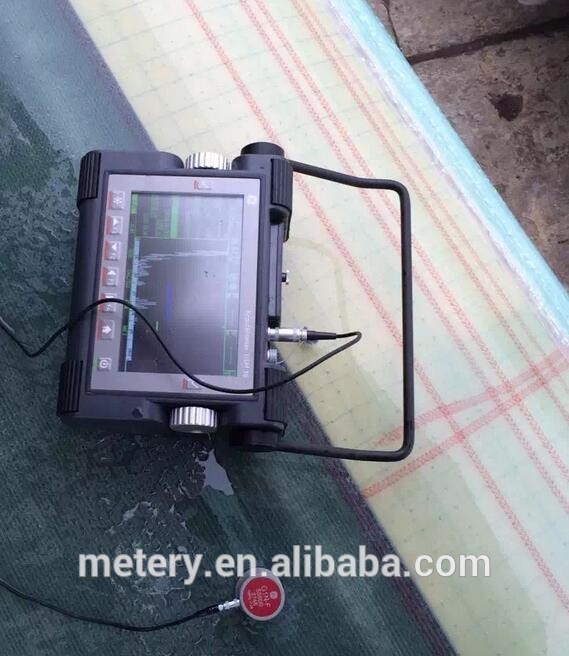

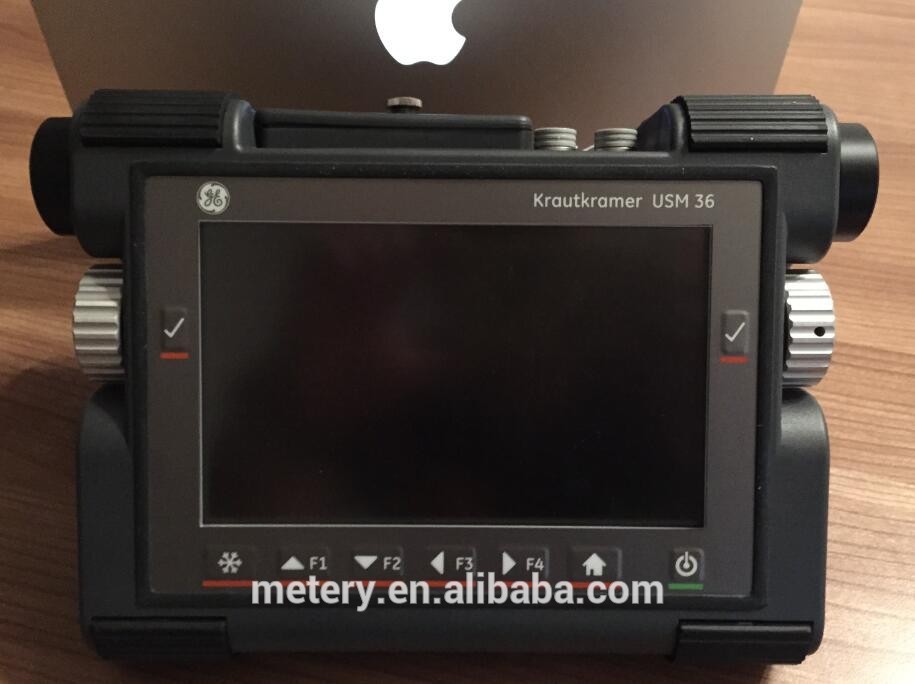

Digital Krautkramer USM36 Ultrasonic Flaw Detector

Introduction

USM36 GE is the latest development of the USM Krautkramer series flaw detector. It will be the twenty-first Century operating platform and GE proven Krautkramer portable flaw detector reliable and durable hardware together. It contains a series of innovative features, to ensure that the global NDT testing personnel to use this new instrument as the main routine testing instrument.
USM36S is advanced, with a DGS curve, Fang Bo and phantom wave PRF.

Parameters

The display screen
Liquid crystal size / range (width * height) 7 /152.4 * 91.44 mm
Resolution (width * height) 800 x 480 pixels
Measuring range 4... 14108mm (555 "), P
Display
Display shift (Yan Shi) -15 3500 s...
Probe delay 1000 s 0...
Velocity range of 250 m/s 16000...
Pulse repetition frequency 15 2000Hz, automatic optimization... Three automatic setting mode: low, medium and high-grade and manual mode
Joint
Probe connector 2xLEMO-1 or 2xBNC
USB interface USB B connector
Pulse generator
Tip pulse generator pulse generator (optional): square wave pulse generator
Pulse generator voltage (SQ mode) 120... 300 V, 10V step, tolerance is 10%
Pulse generator decline / rise time 10ns
Pulse width generator (SQ mode) 30... 500 ns in steps of 10ns
Amplitude pulse generator (sharp pulse mode): 120V, 300V: low grade
Energy pulse generator (sharp pulse mode) and low: 30 nS, 100 nS grade:
Damping 50 ohm, 1000 ohm
Pulse generator
Digital gain dynamic range of 110dB to 0.2dB adjustable step
Analog bandwidth of 0.5 20MHz...
Broadband filter: 1-5MHz/2, 2.25MHz/4, 5MHz/10MHz/13, 15MHz
Rectification positive half wave and negative half wave, Quan Bo, RF signal
Gate
Independent grid A and B (triggered by A, C (gate) gate options, triggered by the gate of A or B)
Measurement mode, peak, flanking J flanking and first peak
Memory
Card slot is suitable for all standard SD card SD card slot
Capacity 8GB, SD card
Data set UGO data structure, in the form of ASCII said
Report JPG or BMP format
Overview
Battery working time: full power lithium ion battery, 13 hours
Charging method (standard): built-in power adapter, charging method (optional): external charger
Charging power and charging power is proportional to the indicator
General power adapter power supply unit 100 240VAC, 50/60Hz...
Host size (height * width * depth) 255 x 177 x 100mm (10 "x 7" x 3.9 ")
Weight (including battery) 2.2kg
Language Bulgarian, Chinese, Czech language, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Norwegian, polish, Portuguese, Romanian, Russian, Spanish, Swedish
Shell according to the standard of IEC 60529 IP66
Working temperature of 55 DEG C -10...
Option
AWS AWS calibration tools, with AWS D1.1 Structural Welding Code
DAC/JISDAC/CNDAC DAC calibration tool for, 16 points, in line with the EN1712, EN1713, EN1714. E164 ASTM, ASME, ASMEIII, JIS Z3060 and GB11345 etc.
TCG: dynamic range 120dB, slope 110dB/ Mu s
DGS DGS calibration tool, with EN 1712, EN 1713, EN 1714 and ASTM E164 standards.
Data logger grid file creation
3G gate C
SWP is used to optimize the parameters of the pulse generator, the voltage is set to 120... 300V, with 10V as the step, pulse width set 30... 10ns, with 500ns as the step
Mirage PRF phantom PRF used to identify this kind of echo from error echo, low attenuation in the material caused by multiple reflections
BEA Black Waldo echo attenuation
