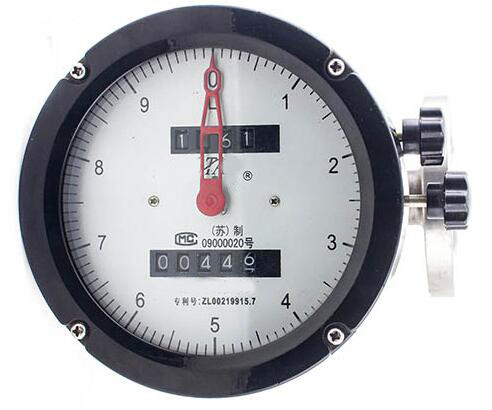

    Pulse RS485 4-20mA Oval gear flowmeter flow meter

    Ask Lasest Price
    Brand Name : oem
    Model Number : 9888
    Certification : ISO CE
    Price : Negotiable
    Payment Terms : T/T Western Union MoneyGram
    Supply Ability : 200 sets/month
    Delivery Time : 3-5 days
    • Product Details
    • Company Profile

    Pulse RS485 4-20mA Oval gear flowmeter flow meter

    Email: info@metery-tech.com, sales@meterytech.com
    -------------------------------------------------------------------------------
    Cellphone: +86 18841127006
    Skpye: meterytech
    LINE: meterytech
    Whatsapp: +86 18841127006
    Wechat: Kai123263788
    QQ: 123263788

    Metery Technology Inc

    --------------------------------------------------------

    www.meterytech.com


    Technical parameters of Pulse RS485 4-20mA Oval gear flowmeter flow meter


    Pulse RS485 4-20mA Oval gear flowmeter flow meterPulse RS485 4-20mA Oval gear flowmeter flow meterPulse RS485 4-20mA Oval gear flowmeter flow meter

    Pulse RS485 4-20mA Oval gear flowmeter flow meterPulse RS485 4-20mA Oval gear flowmeter flow meterPulse RS485 4-20mA Oval gear flowmeter flow meterPulse RS485 4-20mA Oval gear flowmeter flow meter



    Inside nominal diameter (mm)

    8~250

    Accuracy

    0.2%,0.5%

    Pressure loss

    0~1000Mpas<80kpa

    Wirking pressure

    1.6,2.5,4.0,6.3,10,16,25,42MPa

    Temperature range

    -20°C~+300°C

    Dielectric viscosity

    0.1~1000Mpas

    Environment condition

    The temperature of -20 °C ~ +50 °C moisture ≤ 85%, pressure 86kpa ~ 106kpa

    Connection flange

    GB,the other canaccording to user specifiedflangestandard

    Anti-hazard classification

    Intrinsic safety typelaII CT4,explosion suppressiondII BT4

    Flow range

    Inside nominal diameter (mm)

    Flow rangem3/h

    Accuracy class 0.5

    Accuracyclass 0.2

    8

    0.05~0.5

    0.1~0.3

    10

    0.1~0.6

    0.2~0.6

    15

    0.16~1.6

    0.5~1.5

    20

    0.25~2.5

    0.8~2.4

    25

    0.6~6.0

    2~6

    40

    1.6~16

    5~15

    50

    2.5~20

    6~18

    80

    6~48

    12~48

    100

    8~80

    20~60

    150

    25~200

    60~180

    200

    45~360

    100~300

    250

    80~500

    150~450

    Note:Can becustom-made non-standardflowmeter


    Overall dimensions for installation

    Type andnominal

    diameter(mm)

    Flange spacing-L

    Total height-

    H

    Center height-M

    Material quality

    Pressure rating -MPA

    Installation

    MT 8

    180

    260

    35

    carbon steel

    304

    316

    1.6

    2.5

    4.0

    6.3

    10

    26

    42

    horizontal type

    MT 10

    180

    260

    50

    MT 15

    180

    260

    60

    MT 20

    240

    300

    100

    MT 25

    240

    300

    100

    MT 40

    280

    350

    150

    MT 50

    280

    350

    150

    MT 80

    400

    500

    250

    MT 100

    400(560)

    600

    300

    MT 150

    650(700)

    700

    350

    1.6

    2.5

    4.0

    6.3

    MT 200

    1000(800)

    700

    350

    MT 250

    1000

    800

    400

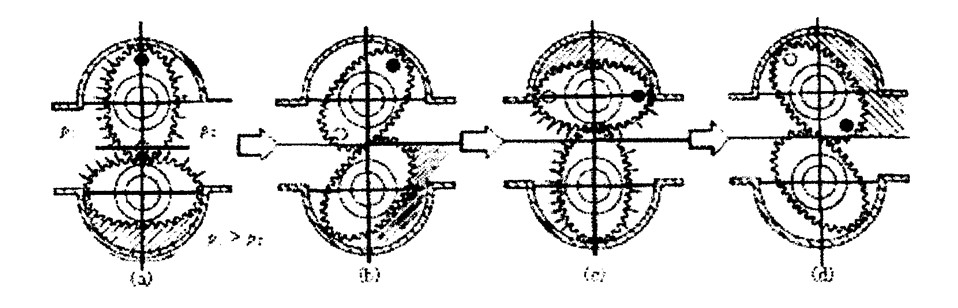

    Structure and working diagram


    Workshop and parts

    We have our own factories and workshop to ensure the quanlity and delivery, so as the reputation related to our

    long run development. Q&C team will make our product enough warranty and credit for our domestic and aboard users.


    Professional test system for flowmeter
