Chemical flow meter MT100VA

    Buy cheap Chemical flow meter MT100VA from wholesalers

    Buy cheap Chemical flow meter MT100VA from wholesalers
    • Buy cheap Chemical flow meter MT100VA from wholesalers

    Chemical flow meter MT100VA

    Ask Lasest Price
    Brand Name : oem
    Certification : ISO CE
    Model Number : 9888
    Price : Negotiable
    Delivery Time : 3-5 days
    Payment Terms : T/T Western Union MoneyGram
    Supply Ability : 200 sets/month
    • Product Details
    • Company Profile

    Chemical flow meter MT100VA

    Email: info@metery-tech.com, sales@meterytech.com
    -------------------------------------------------------------------------------
    Cellphone: +86 18841127006
    Skpye: meterytech
    LINE: meterytech
    Whatsapp: +86 18841127006
    Wechat: Kai123263788
    QQ: 123263788

    Metery Technology Inc

    --------------------------------------------------------

    www.meterytech.com

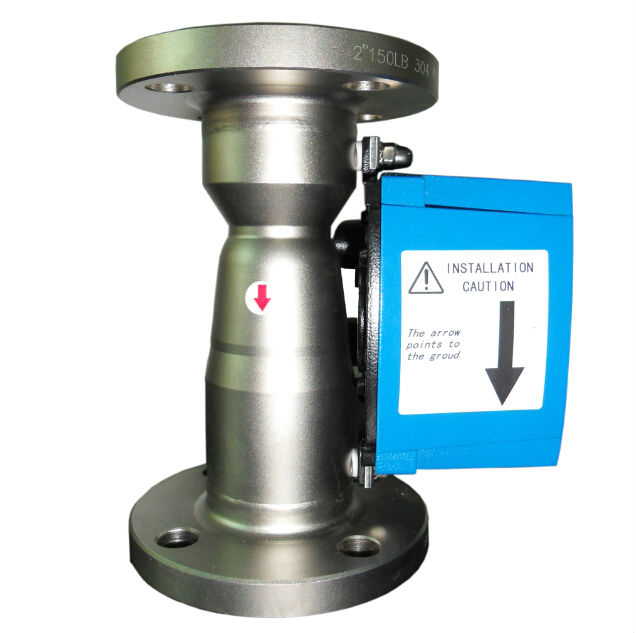

    Picture of Variable area Corrosive liquid flow meter MT100VA series



    Main parameters of Corrosive liquid flow meter MT100VA series from Metery Tech.

    Measuring range

    Water (20 centigrade): 5 to 200000L/h

    Air (0.1013Mpa 20 centigrade): 0.03 to 4000m3/h

    Measuring range ratio10:1 (Special 20:1 optional)
    Accuracy1.5% (1.0% optional)
    Working pressure

    DN15 to DN50 PN4.0Mpa (32Mpa optional)

    DN80 to DN200 PN1.6Mpa (25Mpa optional)

    Medium temperature

    Standard: -80 to +140 centigrade

    High temp. type: 350 centigrade

    Environment temp.-40 to +120 centigrade (Remote output lower or equal than 85 centigrade)
    LCD displayInstant flow:0 to 20000, acumulation flow: 0 to 99999999
    OutputStandard signal: two wire 4 to 20 mA, Pulse signal 0 to min interval 50ms
    Power supply

    Standard: 24VDC (10.8 VDC to 36VDC)

    220VAC (85 to 265VAC)

    Battery type: 3.6/5.2AH Li-ion battery.

    Connection type

    Flange DIN2501 or optional

    Thread DIN11851 or optional

    Electric portM20*1.5, PG11, 1/2 inch NPT
    Overall heightStandard 250mm (Vertically install)
    ProtectionIP65
    Ex-proofExiaIICT3-6 or EXdIIBT4


    Connection Diogram


    Principle and function Diogram


    Dimension and size


    High Pressure type
